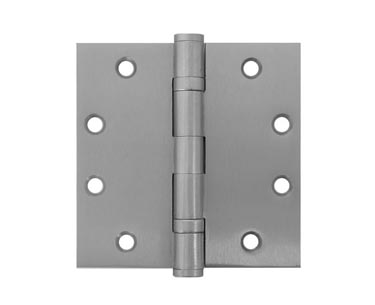

TP4545BB/
TP4545BBNRP		 Plain Steel.134"(3.4)mm
Full Mortise Hinge
Commercial Grade
Ball Bearing
4.5"(114.3)x4"(101.6)
TP4545BBNRP Non Removable Pin
  • Steel base material with non rising pin standard
  • For medium weight doors with average frequency usage
  • Supplied with 2 non detachable ball bearings
  • Template screw hole locations to speed installation
  • Meets ANSI A8112
  • Available in USP, 3, 4, 10, 10A, 26, 26D
  • All other finishes priced on application
  • Non removable available use NRP suffix as shown
