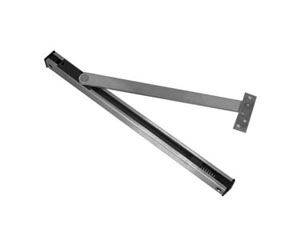

1599S
/1599H
/1599F		 Degree of opening determined by template Range 85-110。
  • Surface mounting (non handed) Single acting
  • For heavy use on high traffic or industuial applications
  • Stainless steel channel and arm
  • Shock absorber spring provides compression before deadstop
  • ANSI A156.8
  • BHMA C55541(Stop)c55531(Friction)
  • 1.3/4"(44.5mm) minimum door thickness
  • Available in all standard architectural finishes
DOOR OPENING
SIZE
BUTT OR OFFSET PIVOT
CENTER HUNG PIVOT
INCHES
CM
INCHES
CM
A
24"-28"
61.0-71.1
25.1/2"-30
64.8-76.2
B
28.1/16"-33"
71.3-83.3
30.1/16"-36"
77.8-91.4
C
33.1/16"-38"
84.0-96.5
36.1/16"-41"
91.6-104.1
D
38.1/16"-43"
96.7-109.2
41.1/16"-46"
104.3-116.8
E
43.1/16"-48"
109.4-121.9
46.1/16"-50"
117.0-127
