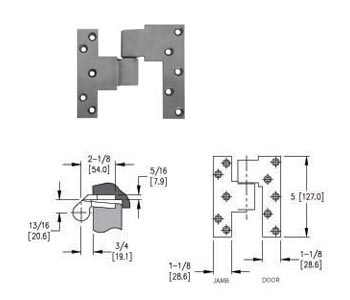

1257 Intermediate Offset Pivot
Full Mortise(Handed)
Note:On labeled door NFPA 80 requires one intermediate pivot per door height up to 90"(2286)mm and two intermediate pivots for doors from 90"(2286)mm to 120"(3048)mm
  • Maintain alignment of the door
  • Available for fire door assemblies (prefix with "F")
  • 3/4" offset (19.1)mm
  • Investment cast stainless steel
  • Needle bearings
  • Available in standard architectural finishes
  • Suggested for use 1235S or 1237S
