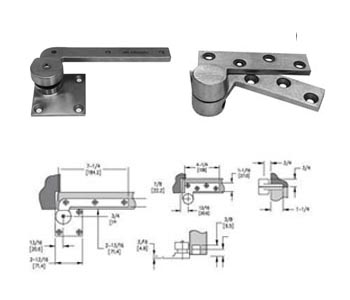

1233S Offset Pivot Set (Handed)
Interior Doors
Width to 4'0"(1220)mm
Height to 8'0"(2440)mm
Weight to 250lbs(91)kg
  • Bottom pivot mounts directly to floor
  • Available for fire door assemblies up to three hours(Prefix with "F")
  • Intermediate pivot required for fire application
  • Investment cast stainless steel, bearings top and bottom pivot
  • Available in standard architectural finishes
  • Extended spindles in 1/2"(12.7)mm increments up to 2"(50.8)mm
  • Intermediate pivot 1251 suggested
