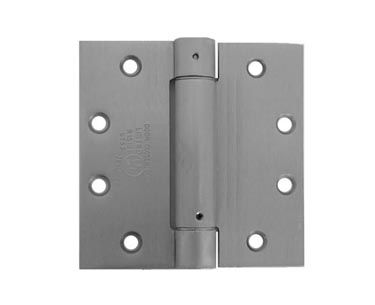

TPS4545
Plain Steel.134"(3.4)mm
Full Mortise Spring Hinge
Commercial Grade
4.5"(114.3)x4.5"(114.3)
Ul Listed for fire doors
Steel base material
Meets NFPA 80 for 3 hour fire doors (minimum 2 per door)
Template screw hole locations to speed installation
Maximum door weight 180 lbs (82)kg
Max door size 3'x7'6"(914x2286)mm(3 hinges per door)
Conforms to ANSI K81071F
Available in USP,3,4,10,10A,26,26D
