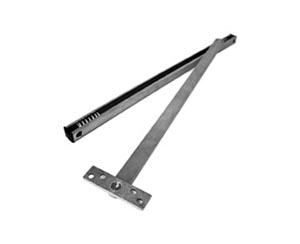

1555S
/1555H
/1555F		 Degree of opening determined by template Range 85-110。
  • Surface mounting (non handed) Single acting
  • Standard duty designed for interior or exterior doors
  • Stainless steel channel and arm
  • ANSI A 156.8
  • BHMA C55542 (Stop) C55512(Hold) C55532 (Friction)
  • Available in all standard architectural finishes
DOOR OPENING
SIZE
BUTT OR OFFSET PIVOT
CENTER HUNG PIVOT
INCHES
CM
INCHES
CM
A
18"-24"
45.7-61.0
21-26.1/2"
53.3-67.3
B
24.1/16"-30"
61.1-76.2
26.9/16"-32"
67.5-81.3
C
30.1/16"-36"
76.4-91.4
32.1/16"-38"
81.4-96.5
D
36.1/16"-42"
91.6-106.7
38.1/16"-45"
96.7-114.3
E
42.1/16"-48"
106.8-121.9
45.1/16"-48"
114.5-121.9
