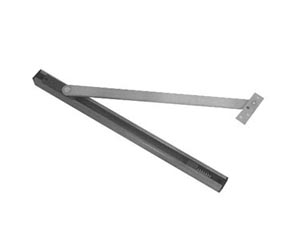

1511S
/1511H
/1511F		 Degree of opening determined by template Range 85-110。
  • Concealed mounting (non handed)
  • For heavy use on high traffic or industrial applications
  • Stainless steel channel and arm
  • Shock absorber spring provides compression before deadstop
  • ANSI A 156.8
  • BHMA C54541 (Stop) C54531 (Friction)
  • 1 3/4"(44.5)mm minimum door thickness
  • Available in all standard architectural finishes
DOOR OPENING
SIZE
BUTT OR OFFSET PIVOT
CENTER HUNG PIVOT
INCHES
CM
INCHES
CM
A
24"-28"
61.0-71.1
-
-
B
28.1/16"-33"
71.3-83.3
30.1/16"-36"
77.8-91.4
C
33.1/16"-38"
84.0-96.5
36.1/16"-41"
91.6-104.1
D
38.1/16"-43"
96.7-109.2
41.1/16"-46"
104.3-116.8
E
43.1/16"-48"
109.4-121.9
46.1/16"-50"
117.0-127
