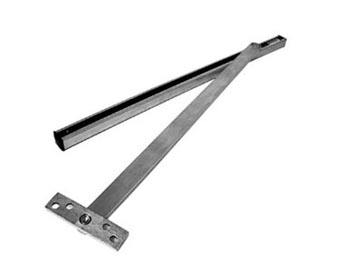

1505S
/1505H
/1505F
Degree of opening determined by template Range 85-110。
Concealed mounting (non handed)
Standard duty for butt hung applications only
Designed for interior or exterior doors
Stainless steel channel and and arm
ANSI A 156.8
BHMA C54542 (Stop) C54512(Hold) C54532 (Friction)
Available in all standard architectural finishes
DOOR OPENING
SIZE
BUTT OR OFFSET PIVOT
CENTER HUNG PIVOT
INCHES
CM
INCHES
CM
A
18"-24"
45.7-61.0
-
-
B
24.1/16"-30"
61.1-76.2
27"-32"
68.6-81.3
C
30.1/16"-36"
76.4-91.4
32.1/16"-38.1/2"
81.4-97.8
D
36.1/16"-42"
91.6-106.7
38.9/16"-45"
97.9-114.3
E
42.1/16"48"
106.8-121.9
45.1/16"-48"
114.5-121.9
